·采用德國比澤爾/壼灣漢鐘半封閉螺杆壓縮機，最新雙螺杆5: 6齒
數比及先進的錢型設計，節能高效。
·高效活閥能量控制，實現分級或無級能控，運轉安静平穩。
·最先進專利技術高精度加工。
·内置全面智能監控與保護，包括電機温度監控，相序監测，人工
復位鎖定，油温監控。
·多種制冷劑供選擇，包括R22、R134a和R407C。
技術參數

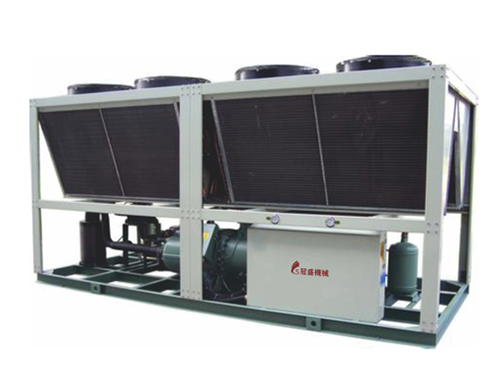

| 類别Type | 螺杆式冷水機組/Screw Water Chiller | |||||||||
| 参数/型號Model | GS- 80ASCD |
GS- 100ASCD |
GS- 120ASCD |
GS- 140ASCD |
GS- 160ASCD |
GS- 200ASCD |
GS- 2490854 |
GS- 240ASCD |
||
| 額定制冷量 RatedCooling Capacity |
50Hz | Btuh | 894468 | 1136862 | 1254986 | 1455047 | 1681736 | 2067518 | 2301036 | 2490854 |
| KW | 262 | 333 | 367.6 | 426.2 | 492.6 | 605.6 | 674 | 729.6 | ||
| Kcalh | 225320 | 286380 | 316136 | 366532 | 423636 | 520816 | 579640 | 627456 | ||
| USRT | 74.5 | 94.7 | 104.5 | 121.2 | 140.1 | 172.2 | 191.6 | 207.4 | ||
| 输入電源/Power input | 380V/3P/50HZ | |||||||||
| 壓縮機/ Compresor |
名義功率/ Compressorpover |
KW | 80 | 88.4 | 91.2 | 105.8 | 121 | 146.2 | 162.2 | 176 |
| 類型/Type | 半封閉聾螺杆式/Semi- hermetic screw | |||||||||
| 啓動方式 Staring Method |
Y-△啓動Y-△Staring | |||||||||
| 能量控制/ CapacityControl |
% | 100-75-50-25 | ||||||||
| 数量/Number | 個/a | 40HP x2 | 50HPx2 | 60HPx2 | 70HPx2 | 80HPx2 | 100HPx2 | 110HPx2 | 120HPx2 | |
| 節流器/Flow regulator | 熱力膨脹閥/Thermostatic expansive valve | |||||||||
| 制冷劑/Refrigerant | R2/R407C/R134A | |||||||||
| 冷凝器/ Condenser |
款式/Stlye | 高效紫銅管套串鋁翅片/High Effective Red Copper Pipes Covered Into Aluminum Fins | ||||||||
| 蒸發器/ Evaporator |
形式VStyle | 高效紫銅管内螺紋殼管式/不锈鋼板式蒸發器 Efficient internal thread copper shell and tube 7 stainless steel plate evaporator |
||||||||
| 標準冷凍水流量/ Standard freezing water flow |
m³/h | 45.05 | 57.26 | 63.21 | 73.29 | 84.71 | 104.14 | 115.90 | 125.46 | |
| 安全装置/SefetyDevice | 高低壓力開關，排氣過熱保護，熱熔塞，防凍結温控制器，過流繼電器，壓編機過熱保護器，相序/缺相保護，油壓保護，水流量保護 Highlow Pressure Switch,Exhausting Overheat Protection,Fusible Plug Anti-freezing Temprealure Contorler.Overcurrent Relay, Sequence Proterctor/l ack Phase Protector,Lack Pressure Proteciton,Water Flow Protect |
|||||||||
| 内置水泵/ Builtin pump | DN | 100 | 100 | 125 | 125 | 125 | 150 | 150 | 150 | |
| 機械尺寸/ Measure |
長Length | mm | 3600 | 4000 | 4800 | 5500 | 6800 | 7800 | 8500 | 11000 |
| 寬/Width | mm | 1800 | 1800 | 1800 | 2050 | 2050 | 2050 | 2200 | 2200 | |
| 高/Heigth | mm | 1930 | 1930 | 1930 | 2200 | 2200 | 2250 | 2350 | 2200 | |
| 機器重量/Machine weight | Kg | 925 | 1080 | 1200 | 1500 | 1680 | 2000 | 2150 | 2360 | |
| 運行重量/Running weight | Kg | 1100 | 1280 | 1470 | 1680 | 1790 | 2230 | 2480 | 2590 | |
